Handheld GCS T31 is a universal solution for controlling the unmanned vehicle and its payload. lt is especially designed for unmanned ground vehicle and robot.The system offers functions like real-time data feedback, remote control status display,route planning, etc. With Windows and Linux OS for choice, T31 supports the most GCS software on the market.
The T31 offers two independent S-BUS channels, serial channels,and other connectors for real-time bidirectional datatransmission.Equipped with an industrial-grade computer and military-grade transmission link,the T31 ensures the safety,stability,and ease of operation for the unmanned vehicle.
We strive to provide a more advanced and user-friendly control solution with the T31,ensuring the security and stability of unmanned vehicles while offering ease of use and convenience.
Product Features
Large Electronics Compartment
The large electronics compartment offers a wide range of connection ports for connecting 3rd party devices.
The T31 supports extended CAN ports and CAN protocol can be self-defined by the host computer, It is possible to access underlying communication protocols via serial port protocols to facilitate usersecondary development.
Ground-Breaking Buttons Settings in the Software
Each button can be used for single-state, bi-state, or tri-state control, or combined with another button(buttons) to simulate linear output functions and multifunction switching.
All the commands from the joysticks, switches, buttons are output from the airborne end through two independent SBUS signal.
Abundant Physical Channels
25 buttons, 1 stop button, 1 directional key,2 hall-effect joysticks, 4 knobs, 2 pull wheels
Anti-Knock Design
Fully rubberized handle for better grip and control.Strap position adjustable; anti-knock
Product Parameters:
| Dimension | |
| Overall weight | 2800g |
| Overall dimension | 378mm(L)*221mm(W)*54mm(H) |
| Display screen | 10.1inch 1280*800 1000nit |
| Computer | |
| CPU | Intel i5 6200U/2.3GHz |
| Touch pad | 10-finger capacitive touch screen |
| Operating system | Windows 10/Linux |
| RAM | 16G DDR4L(standard) 32G max |
| SSD storage | 512GB(standard) 2T max |
| Network | WIFI/Bluetooth(standard) 4G(optional) |
| Interface | HDMI*1,USB3.0*1,4G SIM*1,LAN*1 |
| Remote Control | |
| Physical channel | Main joysticks*2(industrial joysticks with hall sensors),Knob*4,Key button*25,Pull wheel*2,stop button*1,directional button*1,simulate keystrokes*7 |
| Human interface | USB HID |
| Remote control function | Dual SBUS independent output,able to control the vehicle and the payload simultaneously |
| Remote control latency | 40ms |
| SBUS port | SBUS OUT |
| Battery | |
| Battery capacity | 12.6V/10500mAh(external power source also supported) |
| Endurance | 3.5hs with full battery capacity |
| Charging port | Type-c 100W the vehicle and the payload simultaneously |
| Communication link | |
| V21 | 15km grade video&telemetry&RC link |
| The 3rd party communication link | Supportive
|
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
|
|

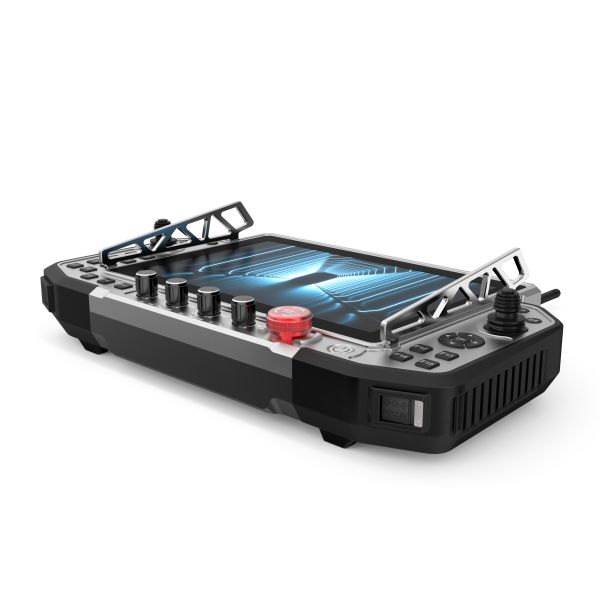

T31 is a highly integrated handheld ground control station specially developed for unmanned vehicles and robots. Images
|
